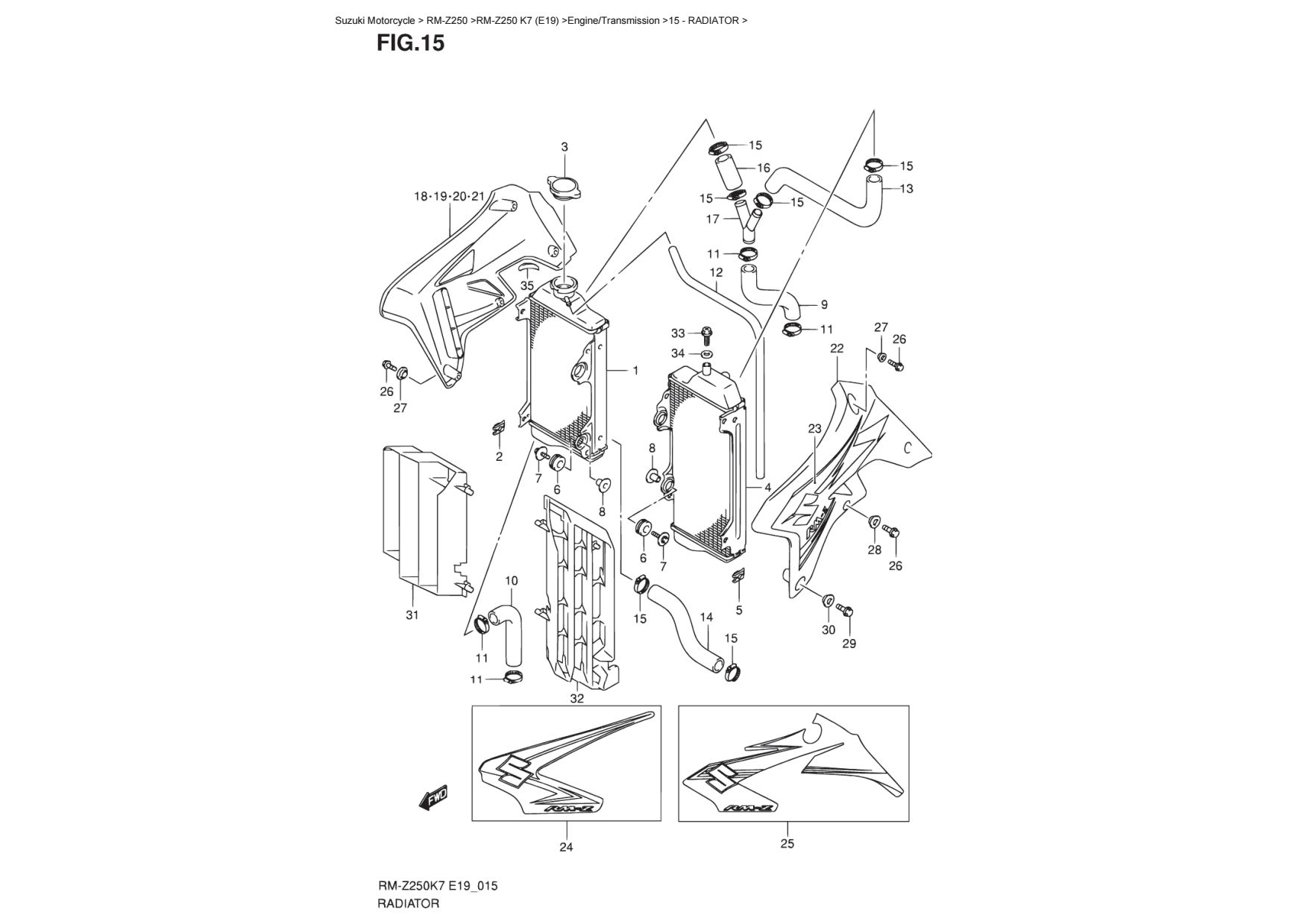

No Part. NO Beskrivelse Pris
1 17710-10H00-000 RADIATOR COMP,WATER,R 5.542,50 kr.
2 09148-06015-000 NUT 22,50 kr.
3 17730-12C20-000 CAP,RADIATOR 278,75 kr.
4 17720-10H00-000 RADIATOR COMP,WATER,L 5.523,75 kr.
5 09148-06015-000 NUT 22,50 kr.
6 17787-19A00-000 CUSHION,RADIATOR,LOWER 27,50 kr.
7 09116-06186-000 BOLT,MUFFLER MTG 18,75 kr.
8 09180-06243-000 SPACER 38,75 kr.
9 17851-10H00-000 HOSE,RADIATOR INLET 151,25 kr.
10 17852-10H00-000 HOSE,RADIATOR OUTLET 141,25 kr.
11 09402-28513-000 CLAMP 51,25 kr.
12 09351-50803-00A HOSE,5X8X1000 35,00 kr.
13 17853-10H00-000 HOSE,RADIATOR JOINT UPPER NO.1 158,75 kr.
14 17855-10H00-000 HOSE,RADIATOR JOINT LOWER 136,25 kr.
15 09402-28513-000 CLAMP 51,25 kr.
16 17854-10H00-000 HOSE,RADIATOR JOINT UPPER NO.2 86,25 kr.
17 17856-10H00-000 JOINT,RADIATOR HOSE 71,25 kr.
18 17761-10H00-YU1 COVER,RADIATOR,R 1.657,50 kr.
19 68660-10H00-DRA TAPE,RADIATOR COVER,R 1.557,50 kr.
22 17762-10H00-YU1 COVER,RADIATOR,L 1.850,00 kr.
23 68670-10H00-DRA TAPE,RADIATOR COVER,L 1.557,50 kr.
26 09103-06233-000 BOLT 15,00 kr.
27 69232-37F01-000 WASHER 82,50 kr.
28 47191-10H01-000 WASHER 67,50 kr.
29 09103-06234-000 BOLT,6X16 21,25 kr.
30 09180-06328-000 SPACER 35,00 kr.
31 17831-10H00-000 LOUVER,RADIATOR,R 822,50 kr.
32 17832-10H00-000 LOUVER,RADIATOR,L 880,00 kr.
33 17568-50F00-000 UNION,AIR VENT 35,00 kr.
34 09168-06026-000 GASKET 22,50 kr.
35 17795-10H00-000 CUSHION,RADIATOR COVER 53,75 kr.
