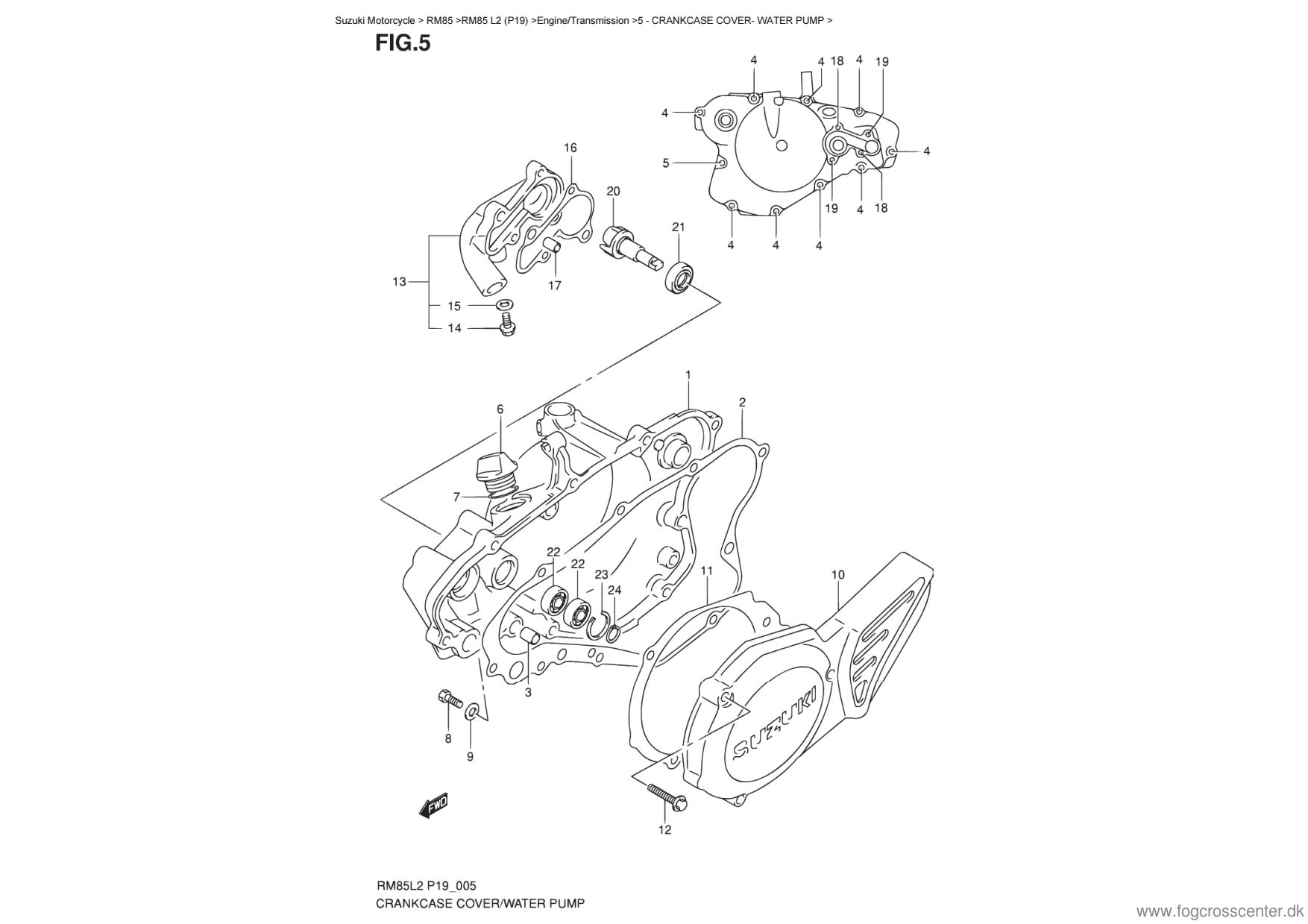

| No |
Part. NO |
Beskrivelse |
Pris |
| 1 |
11341-03B00-000 |
COVER,CLUTCH |
1.395,00 kr.
|
| 2 |
11482-27C02-000 |
GASKET,CLUTCH COVER |
135,00 kr.
|
| 3 |
04211-09129-000 |
PIN 9X12 |
16,25 kr.
|
| 4 |
09103-06250-000 |
BOLT,CL COVER |
22,50 kr.
|
| 5 |
09103-06252-000 |
BOLT,REAR FENDER REAR,R |
27,50 kr.
|
| 6 |
11971-25D00-000 |
PLUG,ENGINE OIL FILLER |
41,25 kr.
|
| 7 |
09280-17003-000 |
O RING,D:3.1,ID:16.8 |
16,25 kr.
|
| 8 |
07120-0610A-000 |
BOLT |
20,00 kr.
|
| 9 |
09168-06004-000 |
GASKET,6.2X11X1.2 |
21,25 kr.
|
| 10 |
11351-03B00-000 |
COVER,MAGNETO |
488,75 kr.
|
| 11 |
11483-03B00-000 |
GASKET,MAGNETO COVER |
56,25 kr.
|
| 12 |
09103-06250-000 |
BOLT,CL COVER |
22,50 kr.
|
| 13 |
17410-03B00-000 |
CASE ASSY,WATER PUMP |
666,25 kr.
|
| 14 |
17415-43D00-000 |
BOLT |
36,25 kr.
|
| 15 |
17413-28C10-000 |
WASHER |
20,00 kr.
|
| 16 |
17431-02B42-000 |
GASKET,WATER PUMP CASE |
61,25 kr.
|
| 17 |
04211-09129-000 |
PIN 9X12 |
16,25 kr.
|
| 18 |
01547-06207-000 |
BOLT |
20,00 kr.
|
| 19 |
01547-0630A-000 |
BOLT,CRANKCASE |
21,25 kr.
|
| 20 |
17491-02B41-000 |
IMPELLER,WATER PUMP |
195,00 kr.
|
| 21 |
17461-03B00-000 |
SEAL,WATER PUMP OIL |
65,00 kr.
|
| 22 |
08113-06980-000 |
BEARING |
107,50 kr.
|
| 23 |
09381-19003-000 |
CIRCLIP |
18,75 kr.
|
| 24 |
08331-31089-000 |
CIRCLIP |
17,50 kr.
|
