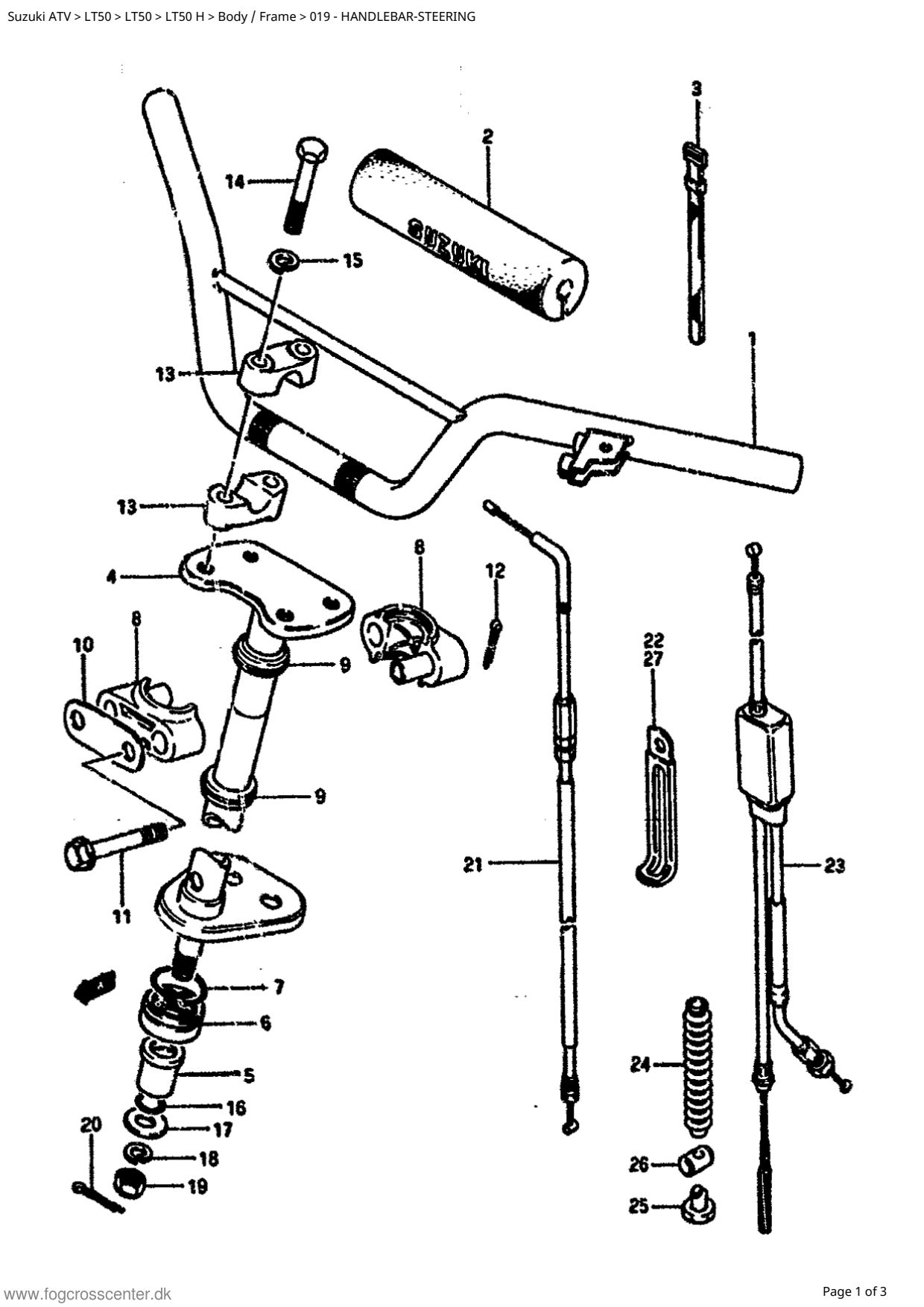

| 1 |
56110-04200-291 |
HANDLEBAR |
373,75 kr.
|
| 2 |
56172-04600-000 |
PAD,CROSS BAR |
101,25 kr.
|
| 3 |
09407-18401-000 |
CLAMP(L:187) |
17,50 kr.
|
| 4 |
51650-04200-000 |
|
|
| 5 |
51661-24401-000 |
|
|
| 6 |
51662-18900-000 |
DUST SEAL,STEERING SHAFT |
57,50 kr.
|
| 7 |
09380-31002-000 |
CIRCLIP |
20,00 kr.
|
| 8 |
51670-18901-000 |
|
|
| 9 |
51678-18900-000 |
DUST SEAL,STEERING HOLDER |
53,75 kr.
|
| 10 |
51681-18900-000 |
REINFORCEMENT, STEERING HOLDER |
21,25 kr.
|
| 11 |
09103-08085-000 |
BOLT (6X80) |
70,00 kr.
|
| 12 |
04111-20208-000 |
PIN,REAR BRAKE ROD FR COTTER |
8,75 kr.
|
| 13 |
56211-04200-000 |
HOLDER,HANDLEBAR |
138,75 kr.
|
| 14 |
01204-08504-000 |
|
|
| 15 |
08321-21084-000 |
|
|
| 16 |
09280-14003-000 |
O RING,D:2.5 ID:13.8 |
32,50 kr.
|
| 17 |
09160-10068-000 |
WASHER,10.5X25X3.2 |
16,25 kr.
|
| 18 |
08321-21104-000 |
WASHER |
12,50 kr.
|
| 19 |
09159-10036-000 |
NUT |
21,25 kr.
|
| 20 |
04111-20208-000 |
PIN,REAR BRAKE ROD FR COTTER |
8,75 kr.
|
| 21 |
58300-04201-000 |
CABLE ASSY,THROTTLE |
257,50 kr.
|
| 22 |
09404-06401-000 |
CLAMP,RSVR TANK OVFL HOSE |
15,00 kr.
|
| 23 |
58500-04200-000 |
|
|
| 24 |
58550-04200-000 |
BOOT ASSY,RR BRAKE |
67,50 kr.
|
| 25 |
09150-05101-000 |
NUT |
23,75 kr.
|
| 26 |
09209-10001-000 |
PIN |
23,75 kr.
|
| 27 |
09404-06404-000 |
|
|
